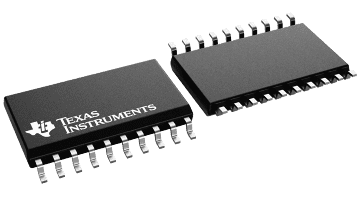

74ACT540DW

12 Stck in Stange / 10,- € = 120,- € Gesamt

202411-004-195

8-Kanal-Wechselrichter, 4,5 bis 5,5 V, mit TTL-kompatiblen CMOS-Eingängen und Tri-State-Ausgängen

cd74act540

1 Features

• SCR-latchup-resistant CMOS process and circuit
design
• Speed of bipolar FAST®/AS/S with significantly
reduced power consumption
• Balanced propagation delays
• AC types feature 1.5V to 5.5V operation and
balanced noise immunity at 30% of the supply.
• ±24mA output drive current
– Fanout to 15 FAST®ICs
– Drives 50Ohm transmission lines

2 Description

The CD54/74AC540, -541, and CD54/74ACT540,
-541 octal buffer/line drivers use the RCA ADVANCED
CMOS technology. The CD54/74AC/ACT540 are
inverting 3-state buffers having two active-LOW
output enables. The CD54/74AC/ACT541 are noninverting
3-state buffers having two active-LOW
output enables.
