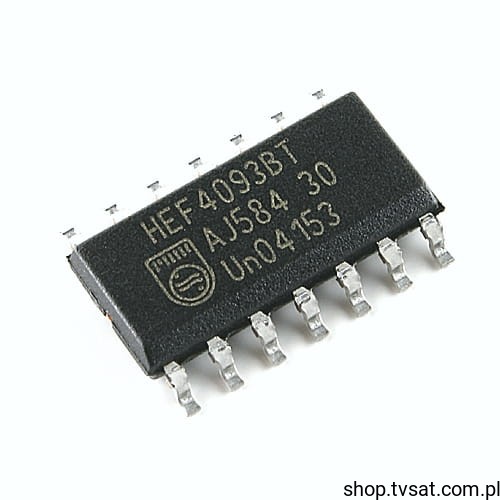

HEF4093BT
Quad NAND Schmitt Flip-Flop SMD-SO14 PHILIPS
11 X in Stange / 0,30 € Stck
202411-004-211
1. General description
The HEF4093B-Q100 is a quad two-input NAND gate. Each input has a Schmitt trigger
circuit. The gate switches at different points for positive-going and negative-going signals.
The difference between the positive voltage (VT+) and the negative voltage (VT) is
defined as hysteresis voltage (VH).
It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS
(usually ground). Unused inputs must be connected to VDD, VSS, or another input.
This product has been qualified to the Automotive Electronics Council (AEC) standard
Q100 (Grade 1) and is suitable for use in automotive applications.
2. Features and benefits
Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from 40 C to +85 C and from 40 C to +125 C
Schmitt trigger input discrimination
Fully static operation
5 V, 10 V, and 15 V parametric ratings
Standardized symmetrical output characteristics
ESD protection:
MIL-STD-833, method 3015 exceeds 2000 V
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V (C = 200 pf, R = 0 )
Complies with JEDEC standard JESD 13-B
3. Applications
Wave and pulse shapers
Astable multivibrators
Monostable multivibrators
