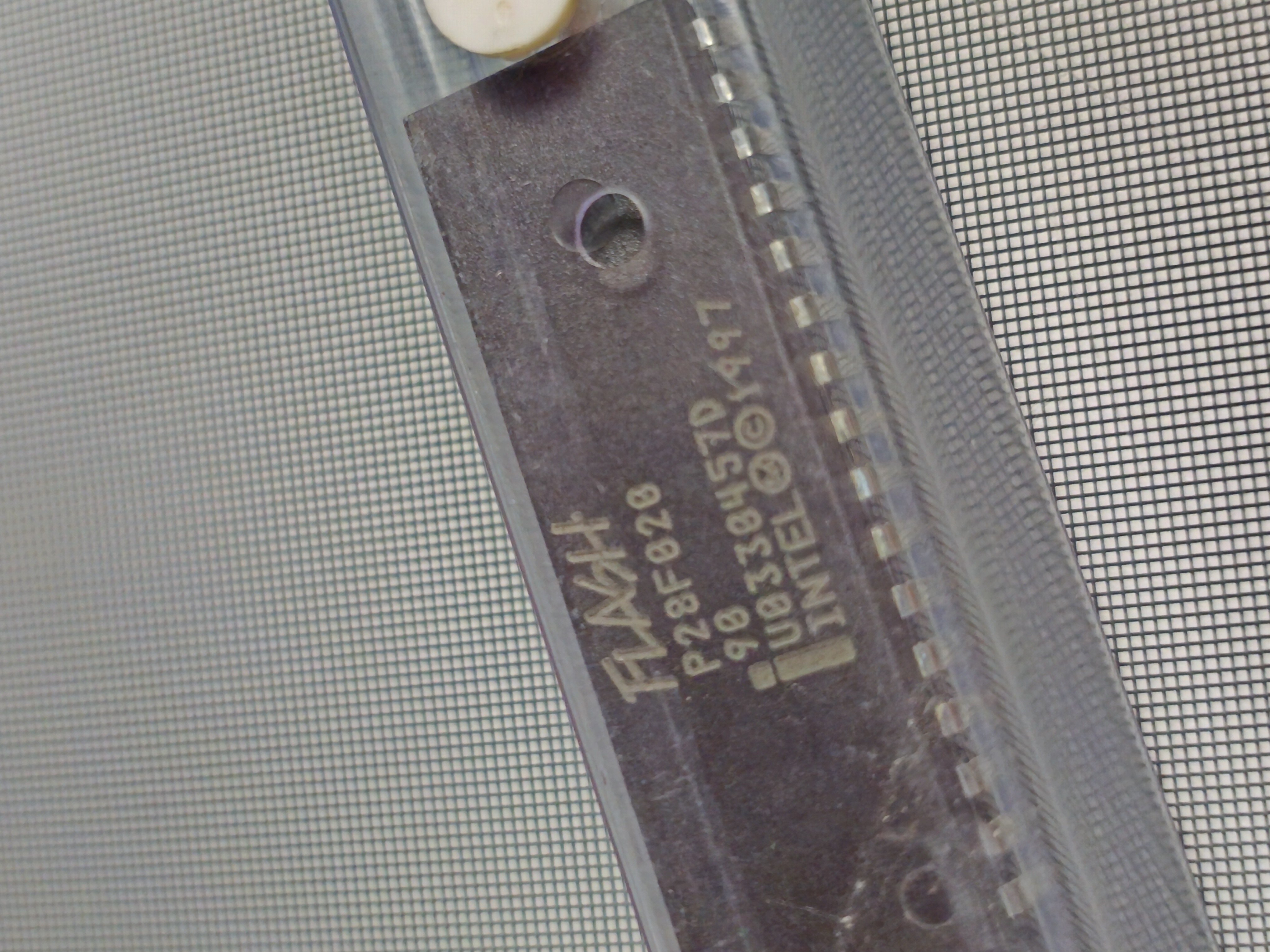

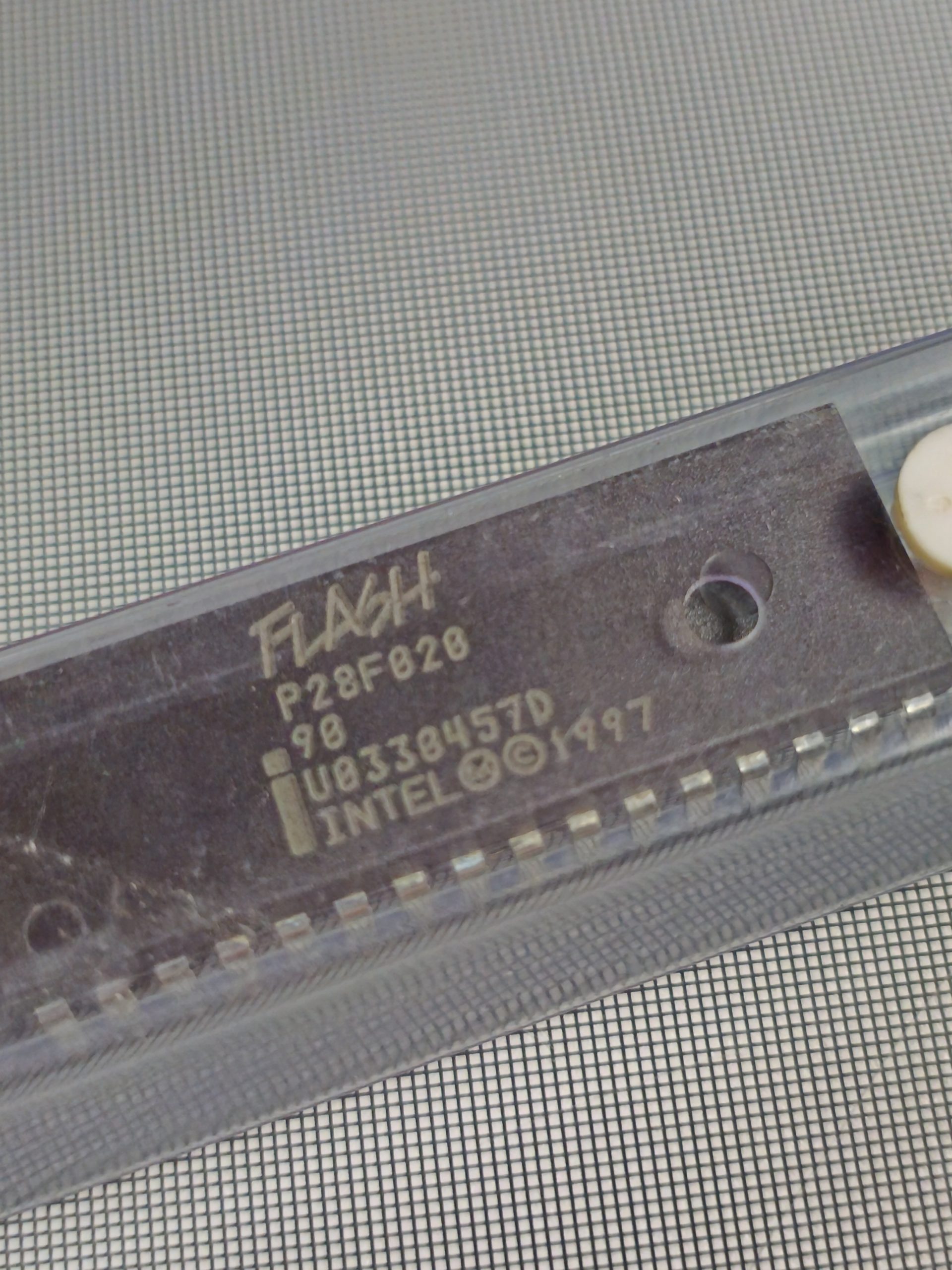

Intel CMOS Flash Memory P28F020
202411-004-138
3 x gebraucht in Stange (1x Programm geschrieben)
1 x neu ? in Stange / alle 4 Stck. 80,- €
n Flash Electrical Chip-Erase
¾ 2 Second Typical Chip-Erase
n Quick-Pulse Programming Algorithm
¾ 10 μS Typical Byte-Program
¾ 4 second Chip-Program
n 100,000 Erase/Program Cycles
n 12.0 V ±5% VPP
n High-Performance Read
¾ 90 ns Maximum Access Time
n CMOS Low Power Consumption
¾ 10 mA Typical Active Current
¾ 50 μA Typical Standby Current
¾ 0 Watts Data Retention Power
n Integrated Program/Erase Stop Timer
Command Register Architecture for
Microprocessor/Microcontroller
Compatible Write Interface
n Noise Immunity Features
¾ ±10% VCC Tolerance
¾ Maximum Latch-Up Immunity
through EPI Processing
n ETOX™ Nonvolatile Flash Technology
¾ EPROM-Compatible Process Base
¾ High-Volume Manufacturing
Experience
n JEDEC-Standard Pinouts
¾ 32-Pin Plastic Dip
¾ 32-Lead PLCC
¾ 32-Lead TSOP
(See Packaging Spec., Order #231369)
n Extended Temperature Options
