PVT322
29 Stck in Stange / 10,- € Stck = 290,- €
202411-004-165
Infineon-pvt322.pdf-DataSheet-v01_00-EN

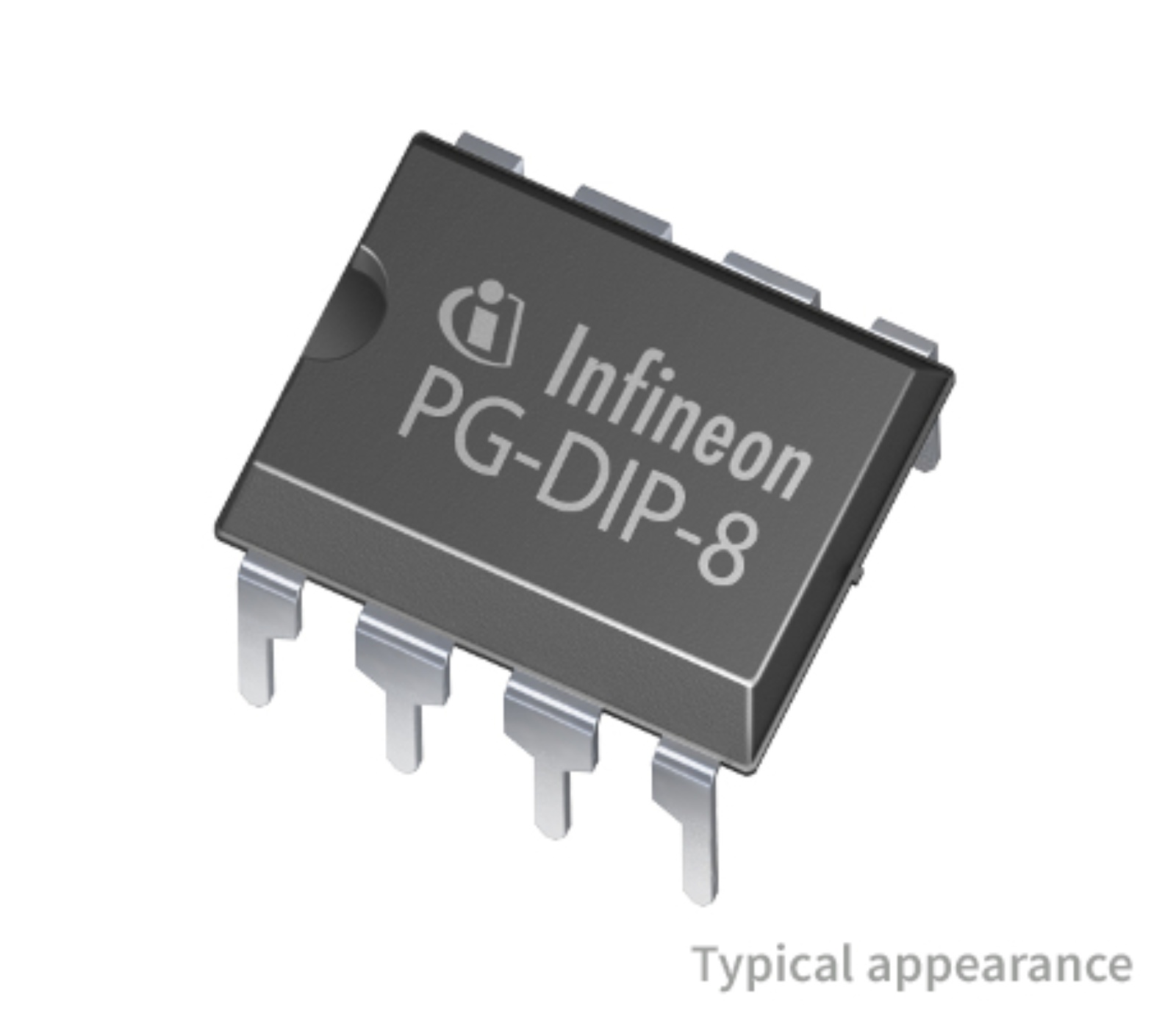

2 Form A Photovoltaic Relay in a 8-pin DIP Package
250 V, 170 mA dual-pole Photovoltaic Relay in a 8-pin DIP Package. This normally open solid-state relay can replace electromechanical relays in many applications.
Zusammenfassung der Merkmale
- HEXFET® Power MOSFET output
- 10 Ω On-Resistance
- 4.000 V(rms) I/O isolation
- Linear AC/DC operation
- Bounce-free operation
- Solid state reliability
- UL recognized
Potentielle Zielanwendungen
- On/Off hook switch
- Tip and Ring Line switching
- General switching
- Electro mechanical relay replacement
Parameter
| Parametrics | PVT322 |
|---|---|
| |Product Group| | 200 V – 250 V |
| Control Current (nominal) min | 5 mA |
| Dielectric Strength max | 4000 V |
| Isolation Voltage | 4000 Vrms |
| Load Current (DC) | 170 mA |
| Load Current (AC) | 170 mA |
| Load Voltage (DC) max | 250 V |
| Load Voltage (AC V(peak)) max | 250 V |
| Response Time (On) max | 3000 µs |
| Response Time (Off) max | 500 µs |
